Rudra Tubefittings, located in Kolkata, India, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Stainless Steel Condensate Pots. These pots are specifically crafted to meet the demanding requirements of industrial instrumentation systems. With a keen emphasis on precision engineering, durability, and dependable performance, Rudra Tubefittings delivers condensate pots that guarantee accurate measurements and safeguard differential pressure transmitters in steam pipelines. The company is well-regarded for its consistent product quality, prompt deliveries, and a customer-focused approach, making it a go-to choice for industries that rely on trustworthy stainless steel instrumentation components.

Stainless Steel Type D Condensate Pot with Red Oxide Coated Manufacturer Kolkata, Stainless Steel Type E Condensate Pot with Zinc Plating Dealer Kolkata, SS Type F Condensate Pots Supplier Kolkata, 316 Stainless Steel Type D Condensate Pot Exporter In India, Stainless Steel Type E Condensate Pot with Galvanized Plating Sockets Manufacturer India, Stainless Steel Type F Condensate Pots with 6 Ports Supplier Kolkata, Kolkata.

When it comes to Stainless Steel Condensate Pots, they are typically made from high-grade stainless steels like SS 304, SS 316, and SS 316L, which provide outstanding corrosion resistance and strength. These materials boast excellent mechanical properties, including impressive tensile strength, toughness, and the ability to withstand high temperatures and pressure changes. Their stable microstructure ensures they hold up well in tough environments, while the smooth internal surface helps reduce contamination and promotes efficient condensate collection and drainage in process systems.

Stainless Steel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Top Stainless Steel Condensate Pots Manufacturing Company in Kolkata

At Rudra Tube Fittings, we are the largest supplier, manufacturer, and exporter of Stainless Steel Condensate Pots in Kolkata, Kolkata. Our advanced manufacturing facilities, strategically positioned in the Kolkata, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Stainless Steel Condensate Pots

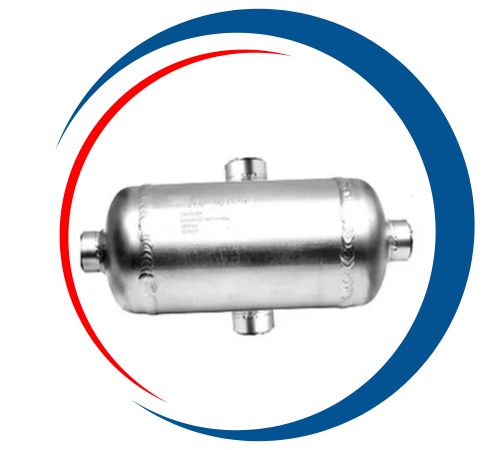

Stainless Steel 4 Ports Condensate Pots Type 2

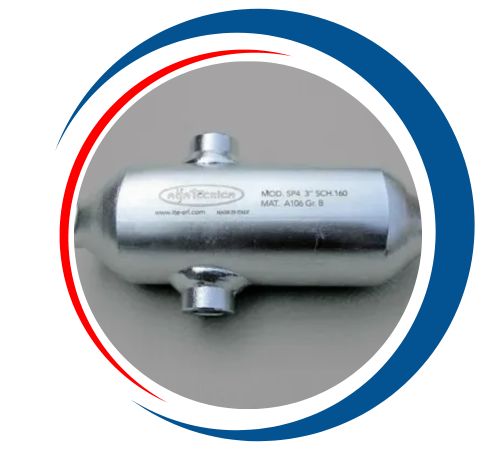

Stainless Steel Condensing Chamber

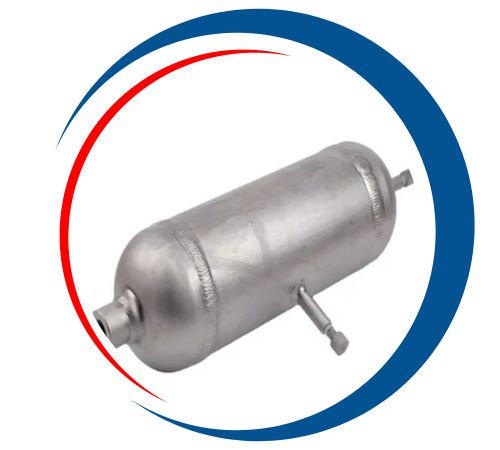

Stainless Steel NPT Furnished Condensate Pot

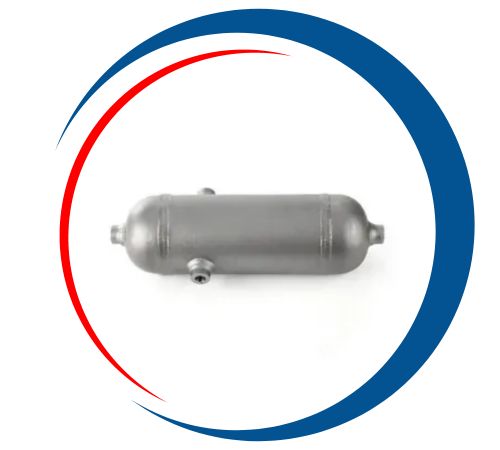

Stainless Steel Condensate Pots 6 Ports

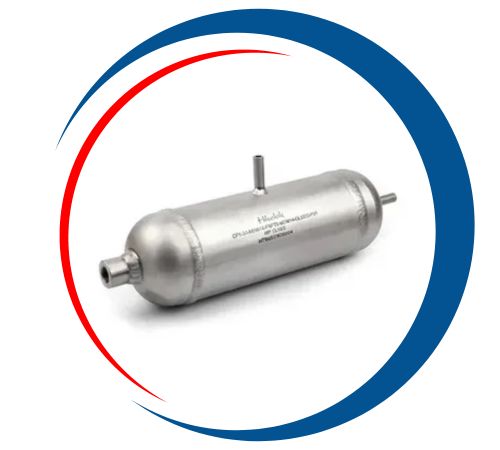

SS 4 Ports Condensate Pots Type 3

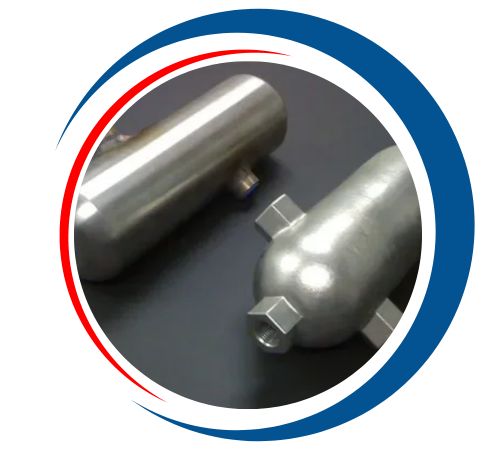

Stainless Steel DRIP Pots

Sizing Of Stainless Steel Condensing Pot

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

SS Type D Condensate Pots Price in Kolkata, SS Type E Condensate Pots Manufacturer Supplier in Kolkata, Stainless Steel Type F Condensate Pot with Red Oxide Coated Manufacturer in Kolkata, Stainless Steel 316 Socket Weld Half Couplings Price in India, Stainless Steel Type D Condensate Pot with Galvanized Plating Supplier And Manufacturer in India, Stainless Steel Type E Condensate Pots with 4 Ports Dealer In Kolkata, Stainless Steel Type F Condensate Pot with Galvanized Plating In Kolkata, Kolkata.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Largest Stainless Steel Condensate Pots Supplier in Kolkata, Kolkata

Rudra Tube Fittings is a leading supplier and stockist of premium Stainless Steel Condensate Pots in Kolkata, Kolkata. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Stainless Steel Condensate Pots
Uses

Stainless Steel Condensate Pots play a crucial role in steam systems by maintaining a steady liquid level and protecting differential pressure transmitters from the harsh effects of high-temperature steam. They are vital in power plants, chemical processing facilities, refineries, and petrochemical industries, ensuring accurate and stable instrument readings. Additionally, these pots find applications in boiler systems, turbine lines, and various high-pressure scenarios where effective condensate separation is essential for enhancing system reliability, measurement accuracy, and extending equipment lifespan.
