Monel Condensate Pots

Home > Monel >Monel Condensate Pots

Rudra Tubefittings, located in Kolkata, India, stands out as a leading manufacturer and supplier of top-notch Monel Condensate Pots. These pots are expertly crafted to efficiently gather condensate and safeguard instrumentation systems in tough industrial settings. Known for their precision engineering, remarkable corrosion resistance, and long-lasting durability, Rudra Tubefittings ensures that every condensate pot adheres to international quality standards. By employing cutting-edge manufacturing techniques and rigorous quality control, the company produces products that can endure high pressures, extreme temperatures, and harsh chemical environments. With a wealth of technical expertise and a strong focus on customer satisfaction, Rudra Tubefittings caters to a variety of industries across India and beyond, offering dependable solutions for critical fluid and gas management.

Monel Type A Condensate Pot with Galvanized Plating Manufacturer Kolkata, Monel® Alloy Type B Condensate Pot with Zinc Plating Dealer Kolkata, Monel Type C Condensate Pots with 4 Ports Dealers Kolkata, Monel Type A Condensate Pots with 2 Ports Exporter In India, UNS N04400 Type B Condensate Pots Exporter In India, Monel Type C Condensate Pot with Zinc Plating Exporter In Kolkata, Kolkata.

Typically made from Monel alloys, especially Monel 400, Monel Condensate Pots are composed of nickel and copper, providing outstanding resistance to corrosion, particularly against acids, alkalis, and seawater. On a mechanical level, they boast high tensile and yield strength, excellent fatigue resistance, and stability under intense pressures and temperatures. The precision engineering involved guarantees structural integrity, leak-proof performance, and long-lasting durability. Monel Condensate Pots are designed to operate reliably in harsh chemical and marine environments, making them perfect for critical industrial applications that demand strength, corrosion resistance, and dependable protection for instrumentation systems.

Monel Condensate Pots Specifications

Standard : DIN, ASTM, BS and all International Standards.
Number of Ports : 2 ports upto 8 ports, refer to the section below for arrangements.
Working Pressure : 6000 PSIG(41.34 MPa).
Pressure Rating : 1500 PSI, 3000 PSI, 6000 PSI, 10000 PSI.
Header Inlet : 1” Female Bsp or Npt threaded to ASME B16.1 or Flanged inlet optional.
Header Outlet/drain : None / or ¼”Male Bsp or Npt threaded to ASME B16.1 or 150# cast fitting.
Pipe size : 2″, 3″, 4″, 5”, 6” and larger size upon request.
Pipe Schedule : 40, 80, 160, XX seamless pipe.
Total Length : Pipe length 8″,10″,12″ and larger length upon request.
Thread Connections : NPT as per ANSI B1.20.1,Socket weld as per ANSI B16.11, Butt weld as per ANSI B16.9.

Chemical Compositions Of Monel Alloy Condensing Pot

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel Alloy Condensing Pot	0.30 max	2.00 max	0.50 max	0.024 max	28.00 – 34.00	2.50 max	63.00 min

Sizing Of Monel Alloy Condensing Pot

P NPT – F	Capacity (Internal Vol.0)cm 3±5%	Pressure Rating PSIG	T mm	L mm	B mm
1/4”	150	1800	2.05	135	50.08
1/4”	300	1800	2.05	225	50.08
1/4”	400	1800	2.05	290	50.08
1/4”	500	1800	2.05	350	50.08
1/4”	1000	1800	4.06	275	88.09
1/4”	2250	1800	5.02	435	120
1/4”	3785	1800	5.02	680	120
1/2”	1000	1800	4.06	275	88.09
1/2”	2250	1800	5.02	435	102
1/2”	3785	1800	5.02	680	102
3/4”	1000	1800	4.06	275	88.09
3/4”	2250	1800	5.02	435	102
3/4”	3785	1800	5.02	680	102

Top Monel Condensate Pots Manufacturing Company in Kolkata

At Rudra Tube Fittings, we are the largest supplier, manufacturer, and exporter of Monel Condensate Pots in Kolkata, Kolkata. Our advanced manufacturing facilities, strategically positioned in the Kolkata, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Monel Condensate Pots

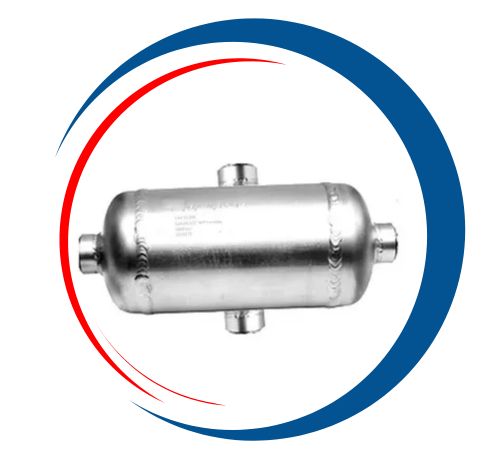

Alloy 400 4 Ports Condensate Pots Type 3

Monel NPT Furnished Condensate Pot

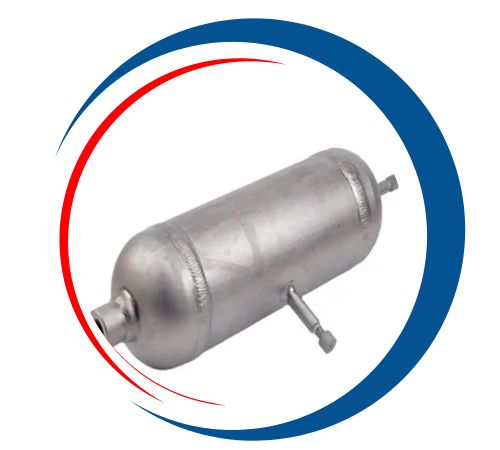

Monel Reboiler condensate pot

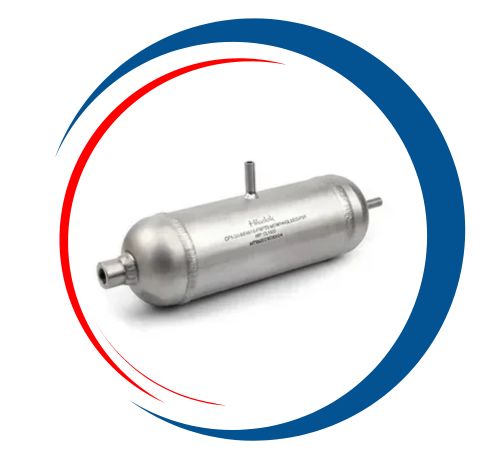

Alloy K500 High Pressure Condensate Pot Stockiest

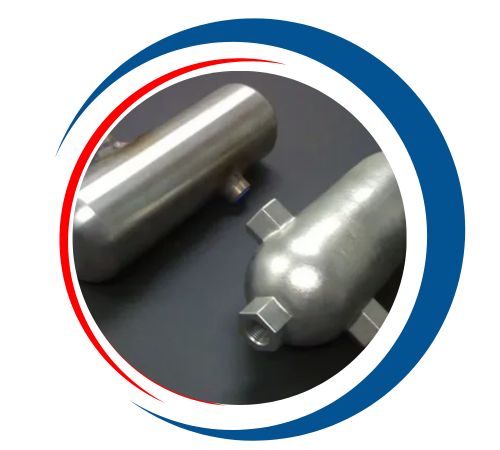

Monel 4 Ports Condensate Pots Type 2

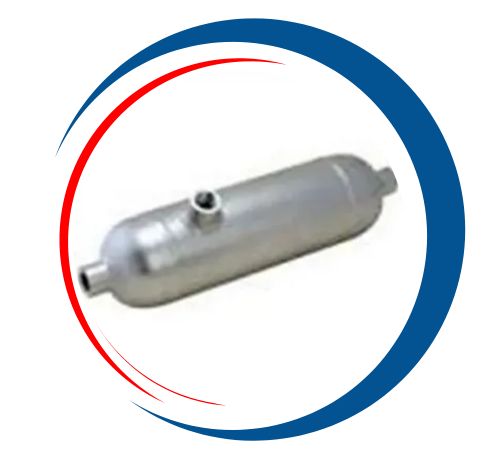

Monel® Alloy DRIP Pots

Monel Condensate Pot Type A Price in Kolkata, Monel Type B Condensate Pot with Red Oxide Coated Manufacturer Supplier in Kolkata, Monel Condensate Pot Type C Manufacturer in Kolkata, Monel® Alloy Type A Condensate Pot with Red Oxide Coated Price in India, K500 Monel Condensate Pots Type B Manufacturer in India, 400 Monel Type C Condensate Pot Dealer In Kolkata, Kolkata.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Largest Monel Condensate Pots Supplier in Kolkata, Kolkata

Rudra Tube Fittings is a leading supplier and stockist of premium Monel Condensate Pots in Kolkata, Kolkata. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Monel Condensate Pots Uses

These pots are widely utilized in industries that need effective condensate collection and reliable safeguarding of temperature and pressure instrumentation. You’ll find them commonly used in chemical processing, petrochemical plants, oil and gas, power generation, desalination units, and marine engineering. Monel Condensate Pots efficiently separate condensate from process fluids, preventing any damage to control valves and instrumentation in high-pressure and high-temperature systems. They also play a crucial role in refineries, ensuring smooth operations in challenging conditions.
