Incoloy Tube Fittings

Home > Incoloy > Incoloy Tube Fittings

Rudra Tubefittings, a prominent manufacturer and supplier located in Kolkata, India, specializes in high-quality Incoloy Tube Fittings designed for top-notch performance in tough industrial settings. These fittings are built to resist oxidation, high-temperature corrosion, and chemical attacks, ensuring that connections in critical fluid and gas handling systems are secure and leak-proof. With a commitment to advanced manufacturing techniques and rigorous quality control, Rudra Tubefittings delivers products that are precise, durable, and dependable. Their Incoloy Tube Fittings are trusted across various industries that need high-performance solutions capable of enduring extreme temperatures, corrosive substances, and challenging operational conditions.

Incoloy Instrumentation Tube Fittings Supplier in Kolkata, Incoloy Double Ferrule Tube Fittings Price List in Kolkata, Incoloy Back Ferrule Manufacturer in Kolkata, Incoloy Single Ferrule Fittings In India, Incoloy Bulkhead Union, Incoloy Ferrule Fittings Exporter in Kolkata, Incoloy Instrumentation Fittings Manufacturer in India, Incoloy Compression Tube Fittings in Kolkata, Kolkata.

Made from nickel-iron-chromium alloys, often with added molybdenum and copper depending on the specific grade, Incoloy Tube Fittings offer remarkable corrosion resistance and mechanical strength. These alloys are known for their excellent resistance to pitting, stress corrosion cracking, and oxidation, even in high-temperature and aggressive chemical environments. Incoloy maintains its dimensional stability and toughness over a wide temperature range, making it perfect for long-term applications. Its unique blend of strength, ductility, and corrosion resistance guarantees reliable performance in high-pressure, high-temperature, and chemically aggressive systems.

Incoloy Tube Fittings Specifications

Material Test Certificates (MTC) for Tube Fitting as per EN 10204 3.1 and EN 10204 3.2, Test Certificates certifying NACE MR0103, NACE MR0175
Specifications	ASTM B366 / ASME SB366
Size	1/16 in. to 2 in. & 2mm to 50 mm.
Dimensional Range	1/16 to 2 inches (imperial); 2 to 50 mm (metric)
Working Pressures	Upto 2000 to 8250 PSI
Thread Type	NPT – ASME B1.20.1, SAE AS71051 \| ISO/BSP Parallel – ISO 228 \| ISO/BSP Tapered – ISO 7, BS EN 10226-1 \| SAE (Unified) – ASME B1.1
End Connections	NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters
Types	Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories
Equivalent To	SWAGELOK, PARKER, DK-LOK, HOKE
Max Working Pressure	8MPa \| 1200psi Depending on The Tubing Material
Working Temperature	-40°C—250°C \| -40°F—482°F Depending on The Tubing Material
Configurations	Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End
Tube Fitting uses & application	Compression tube fitting to connect two imperial tubes (or fractional tubes), two metric tubes or, also, the connection of a metric tube at one end and a fractional/imperial tube at the other end in Petroleum, Power, Chemical, Construction, Gas, Metallurgy, Shipbuilding etc Tube Fittings useful for their extreme temperature and pressure capabilities for high/low temperatures applications, and their compatibility with aggressive fluids, compression fittings can be seen in systems varying from gas lines in refineries, plumbing etc.

Incoloy Tube Fittings Chemical Composition

Grade	C	Mn	Si	S	Al	Ti	Fe	Ni	Cr
Incoloy Tube Fittings	0.10 max	0.50 max	0.50 max	0.015 max	0.40 max	0.40 max	5.0 max	58.0 min	20.0 – 23.0

Incoloy Tube Fittings Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.4 g/cm3	1350 °C (2460 °F)	Psi – 1,35,000 , MPa -930	Psi – 75,000 , MPa – 517	42.5 %

Types of Incoloy Tube Fittings

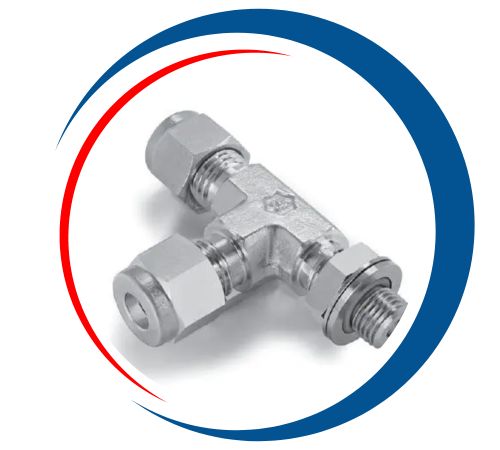

Incoloy Positionable Male Run Tee

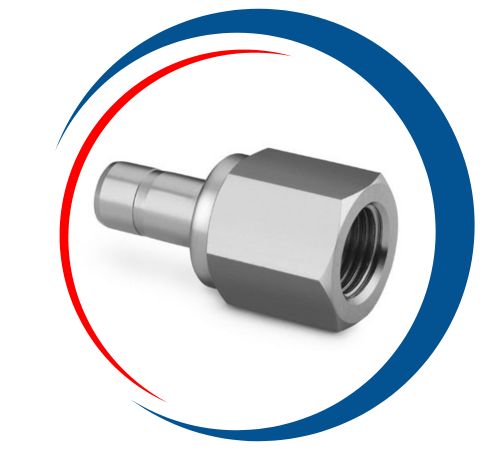

Incoloy Female Adapter

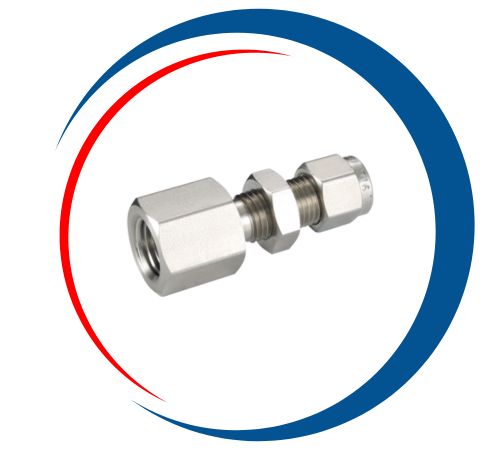

Incoloy Bulkhead Female Connector

Incoloy Male Adapter

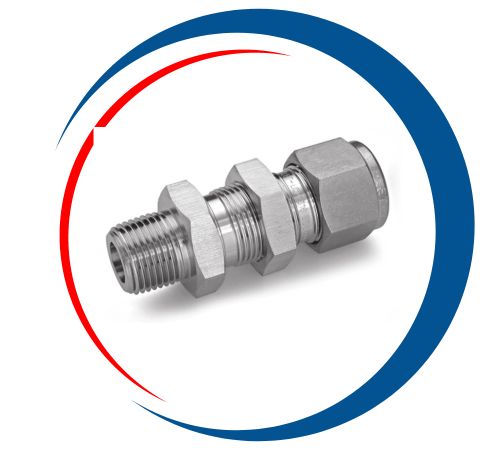

Incoloy Bulkhead Male Connector

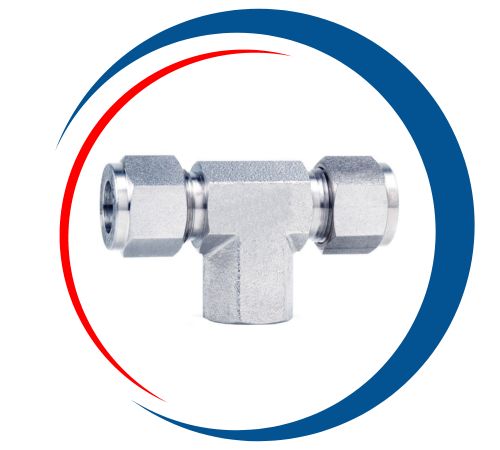

Incoloy Female Branch Tee

Incoloy Tube Fittings Equivalent Grades

STANDARD	UNS	WNR.	AFNOR	EN	JIS	BS	GOST	OR
Incoloy Tube Fittings	N08825	2.4858	NC22DNB4M	NiCr22Mo9Nb	NCF 825	NA 21	ЭП703	ЭИ602

Incoloy Bulkhead Union, Incoloy Alloy Tube To Union, Incoloy Instrumentation Tube Fittings Price in Kolkata, Incoloy Male Branch Tee Supplier in Kolkata, Incoloy Bulk Head Female Connector Manufacturer in Kolkata, Incoloy Single Ferrule Tube Fittings Price in India, Incoloy Male Run Tee Supplier And Manufacturer in India, Incoloy Male Elbow In Kolkata, Kolkata.

Largest Manufacturer and Supplier of Incoloy Tube Fittings in Kolkata, Kolkata

At Rudra Tube Fittings, we are proud to be the largest supplier, manufacturer, and exporter of Incoloy Tube Fittings in Kolkata, Kolkata. Our cutting-edge solutions cater to all your piping needs. With state-of-the-art production facilities strategically located in the Kolkata, we maintain a vast inventory of over 16,000 tons of premium-quality materials, ensuring we have the stock readily available to meet your demands.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Incoloy Tube Fittings Uses

Incoloy Tube Fittings find extensive use in industries that require dependable, corrosion-resistant, and high-temperature-capable connections. They play a crucial role in chemical processing, petrochemical plants, and oil and gas systems, where exposure to harsh fluids and elevated temperatures is routine. Power generation and desalination plants depend on them for heat exchangers and high-temperature instrumentation lines. Moreover, Incoloy Tube Fittings are utilized in aerospace, marine engineering, and specialized laboratory systems that demand leak-proof, durable, and corrosion-resistant connections for safe and efficient fluid handling.
