Rudra Tubefittings, a prominent manufacturer and supplier located in Kolkata, India, specializes in top-notch Hastelloy Tube Fittings that are crafted for outstanding corrosion resistance and durability, even in the toughest industrial settings. These fittings are designed to create leak-proof, dependable connections, making them perfect for critical fluid and gas systems that come into contact with harsh chemicals, extreme temperatures, and both oxidizing and reducing environments. At Rudra Tubefittings, they utilize cutting-edge manufacturing techniques, precise engineering, and rigorous quality control to guarantee products that are not only long-lasting but also dimensionally accurate and high-performing. Their Hastelloy Tube Fittings are extensively used across industries that demand robust, high-integrity solutions for challenging operating conditions.
Made from nickel-based alloys that include molybdenum, chromium, and trace amounts of iron and other elements depending on the specific grade (like C276, B2, or C22), Hastelloy Tube Fittings offer remarkable resistance to pitting, crevice corrosion, and stress-corrosion cracking in both oxidizing and reducing environments. These alloys boast excellent mechanical strength, ductility, and stability, even at high temperatures and in aggressive chemical conditions. Plus, they are easy to fabricate and weld, ensuring reliable, long-term performance in high-pressure, high-temperature, and highly corrosive systems.
| Hastelloy Tube Fittings specification (ASTM / ASME) | ASTM B366, ASME SB366 |
|---|---|
| Working Pressure | Up to 6,000 psi (based on severity of application) |
| Two-Ferrule Tube Fittings | Pressure Ratings : Up to 11 000 psig (760 bar) |
| Medium-Pressure, Gaugeable | Pressure Ratings: Up to 20 000 psig (1378 bar) Temperature Ratings: Up to 1000°F (537°C) |
| High-Pressure Hastelloy C276 Tube Fittings | Pressure Ratings: Up to 60 000 psig (4134 bar) Temperature Ratings: Up to 1000°F (537°C) Materials of construction: 316 Stainless Steel Tube Fittings, Alloy 2507, Inconel 625 Tube fittings |
| Hastelloy Tube Fittings Special sizes | 22mm Hastelloy C276 tube fittings 25mm Hastelloy C22 tube fittings 32mm Hastelloy B2 tube fittings 50mm Hastelloy Ferrule tube fittings |
| Hastelloy Compression Fittings End Connections | Types: NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |
| Hastelloy C276 Tube Fittings Sizes | 1/16 to 2 in.; 2 to 50 mm 1/4, 3/8, 1/2, 9/16, 3/4 in.; 6, 10, 12 mm |
| Brand Name | Hastelloy Tube fittings |

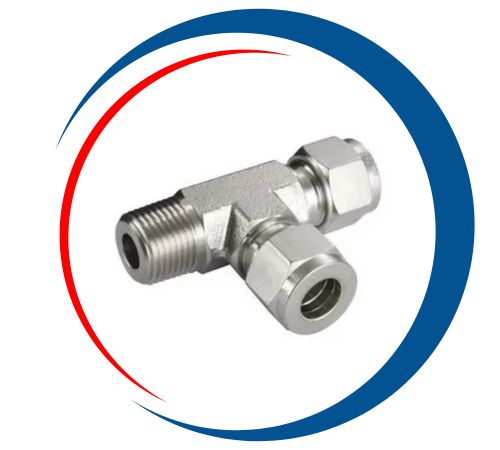

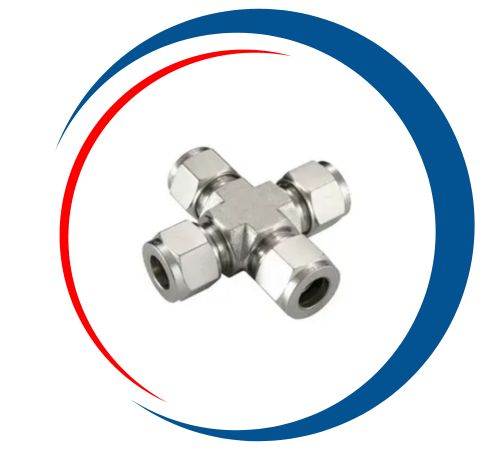

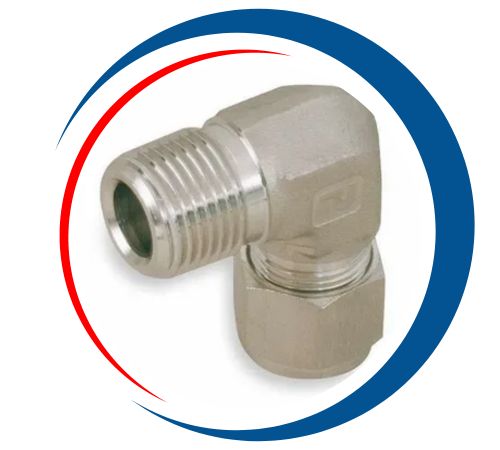

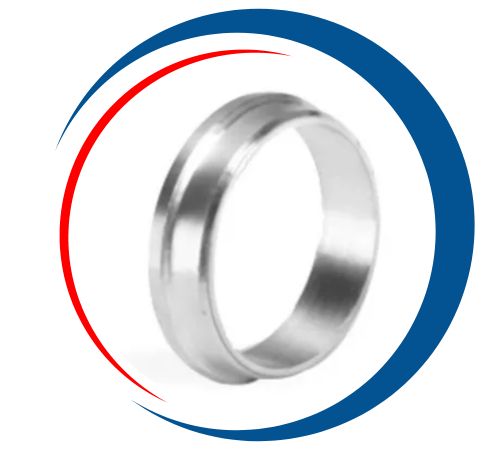

| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Types | Unions, NPT, medium-pressure cone and thread adapters, male SAE/MS, reducers, port connectors, tube adapters, caps, plugs |
| Hastelloy Hydraulic Fittings Specification | Items Made from Hex – ASTM B574 ; Items made from Round Bar- ASTM B564 |
| Tube Size | 1/16”OD to 2”OD, 2mm OD to 50mm OD |
| Threads | NPT (ANSI B1.20.1), BSP, BSPT (ISO thread configurations), UNF, SAE etc. |
| PTFE Standards | ASTM D1710, ASTM D3294 |
| Hastelloy Ferrule Tube Fittings Applicable Temperature | 150-400°C |
| Hastelloy C276 Tube Fittings Packing Details |
|
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| C276 | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| C22 | 0.010 max | 0.50 max | 0.08 max | 0.02 max | 2.50 max | 50.015 min* | 20.00 – 22.50 | 2.00 – 6.00 | 12.50 – 14.50 | 0.02 max |
| B2 | 0.02 max | 1.0 max | 0.1 max | 0.03 max | 1.0 max | Bal | 1.0 max | 2.0 max | 26 – 30 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C276 | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
| Hastelloy C22 | 8.69 g/cm3 | 1399 °C (2550 °F) | Psi – 1,00,000 , MPa – 690 | Psi – 45000 , MPa – 310 | 45 % |
| Hastelloy B2 | 9.2 g/cm3 | 1370 °C (2500 ºF ) | Psi – 1,10,000 , MPa – 760 | Psi – 51000 , MPa – 350 | 40 % |
At Rudra Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hastelloy Tube Fittings in Kolkata, Kolkata. Our advanced manufacturing facilities, strategically positioned in the Kolkata, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.
| OD Size: 6mm to 38mm | Inch: 1/4″ to 1 1/2″ |
Contact us to get a quick quote for your requirement.
Rudra Tube Fittings is a leading supplier and stockist of premium Hastelloy Tube Fittings in Kolkata, Kolkata. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.
Hastelloy Tube Fittings find their place in industries that require exceptional corrosion resistance and dependable operation under extreme conditions. They are particularly suited for chemical processing, petrochemical plants, and pharmaceutical applications where aggressive chemicals and acids are prevalent. The marine and desalination sectors also rely on them for chloride-rich and seawater systems. Furthermore, Hastelloy Tube Fittings are utilized in power generation, aerospace, pulp and paper processing, and high-purity instrumentation lines, where leak-proof, durable, and high-performance connections are essential for safe and efficient operations.
Please feel free to contact us if you need any further information or for enquiry.
