PP Ball Valve

Home > PP Ball Valve

Rudra Tubefittings, located in Kolkata, India, specializes in providing durable and budget-friendly PP Ball Valves that are perfect for efficient shutoff and flow control in both corrosive and non-metallic pipeline systems. Crafted from high-quality Polypropylene (PP), these valves boast impressive chemical resistance, a lightweight design, and dependable sealing performance. They’re particularly suited for low- to medium-pressure applications where traditional metal valves might corrode or react negatively with the fluid. With their smooth quarter-turn operation, minimal maintenance needs, and long-lasting durability, Rudra’s PP Ball Valves are a reliable choice for a variety of industrial and utility applications.

PP ball valve Manufacturer In Kolkata, PP ball valve In Kolkata, PP ball valve Kolkata, PP ball valve India. PP ball valve Jebel Ail, PP ball valve Supplier In Kolkata, Kolkata.

PP Ball Valves are constructed from top-notch polypropylene, a thermoplastic polymer celebrated for its robust chemical resistance, low moisture absorption, and outstanding dimensional stability. They feature impressive mechanical properties, including good tensile strength, impact resistance, and the ability to withstand moderate temperatures. The valves come equipped with PTFE seats, corrosion-resistant stems, and smoothly machined internal surfaces for effortless operation. Polypropylene’s resistance to acids, alkalis, and many aggressive solutions ensures these valves perform reliably in non-metallic piping systems. Their lightweight yet sturdy build allows for effective sealing and handling without the worry of corrosion or leaks.

PP Ball Valve Specifications

Material Of Construction	Unplasticized Poly Vinyl Chloride	Construction	Multi Piece Body
Design	Single body moulded	Test pressure	07 kg./cm2
Max working temp	60 c (consistently)	Size Range	15 m to 80 mm
Connection End	Solid Plain and Ball Valve	Standard	As per requirement

PP Flange End Ball Valve Material of Construction

Material Specification
No.	DESCRIPTION	QTY.	MATERIAL
1)	Flanged end	2	PP / HDPE & PVDF
2)	Body	1	PP / HDPE & PVDF
3)	Ball	1	PP & PVDF
4)	Stem/Spindal	1	Polypropylene With M.S. /S.S
5)	Seat Ring	2	PTFE (TEFLON)
6)	Body”O”Ring	2	Neoprene
7)	Stem Seal Ring	1	PTFE (TEFLON)
8)	Stem “O” Ring	1	Neoprene
9)	Stud, Nut & Washer	REQ	M.S. Zinc Plated/S.S
10)	Nut Cap	REQ	Polypropylene.
11)	Handle	1	M.S. PP Coated.
12)	Handle Hex. Pin	1	M.S./ S.S.
13)	Handle Cap	1	Polypropylene.

Polypropylene Flange End Ball Valve Dimensions

Size		L	T	OD	ID	H1	H
In.	MM
1/2″	15MM	129	12.5	100	13.5	130	69
3/4″	20MM	142	14	101	19	131	75
1″	25MM	160	20	123	24	165	89
1 1/2″	40MM	182	20	140	38	197	109
2″	50MM	208	22	165	50	200	121
2 1/2″	65MM	230	25	185	63	255	144
3″	80MM	251	25	201	75	255	150
4″	100MM	302	28	228	100	350	182
6″	150MM	428	30	300	150	–	236
8″	200MM	505	32	360	201	–	325
10″	250MM	570	34	425	242	–	310
12″	315MM	590	35	487	300	–	309

Top PP Ball Valve Manufacturing Company in Kolkata

At Rudra Tube Fittings, we are a leading supplier, manufacturer, and exporter of PP Ball Valve in Kolkata, Kolkata. Our state-of-the-art manufacturing facilities, strategically located in the Kolkata, enable us to deliver high-quality solutions that meet your specific requirements. With a comprehensive inventory of Monel materials, we are well-equipped to fulfill your needs efficiently. Our commitment to excellence and customer satisfaction ensures that we consistently maintain a ready stock of Monel Manifold Valves to support your operational demands.

Types of PP Ball Valve

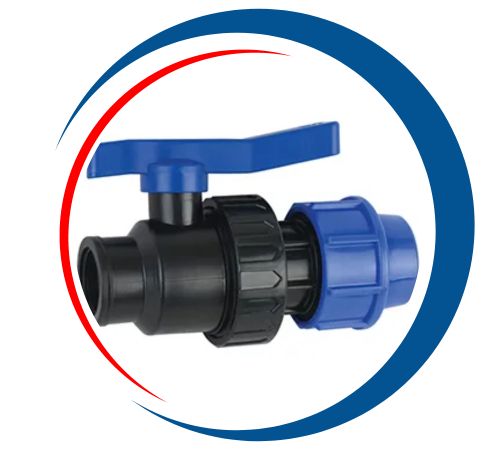

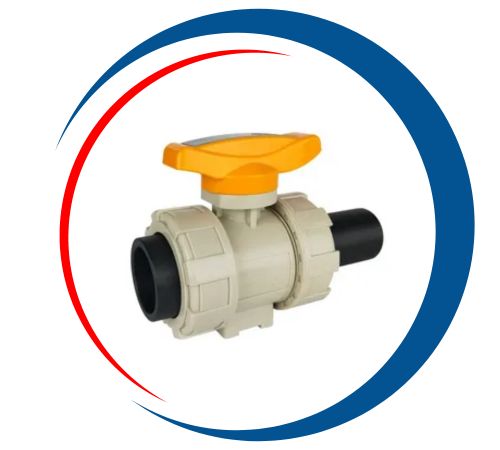

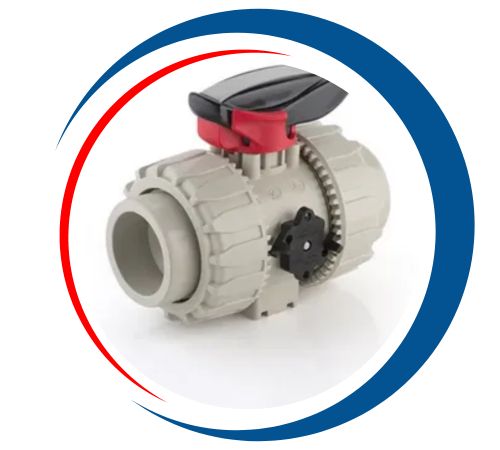

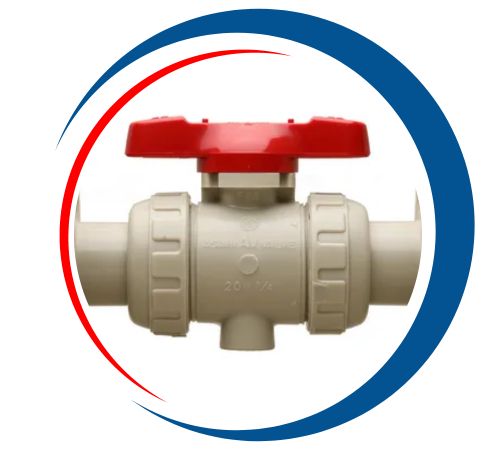

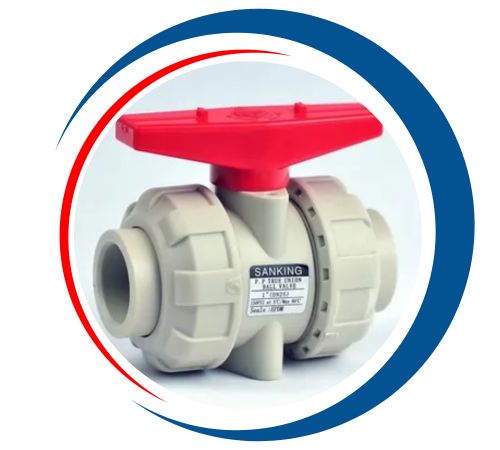

PP Ball Valve

PP Ball Valve Exporter

PP Ball Valves Dealer

PP Ball Valve Supplier

PP Ball Valve Manufacturer

PP Ball Valve Stockist

PP ball valve Manufacturer In Kolkata, PP ball valve In Kolkata, PP ball valve Kolkata, PP ball valve India. PP ball valve Jebel Ail, PP ball valve Supplier In Kolkata, Kolkata.

Largest Manufacturer and Supplier of PTFE Ball Valve in Kolkata, Kolkata

Rudra Tube Fittings is a leading supplier and stockist of premium PTFE Ball Valve in Kolkata, Kolkata. Our products find extensive application across diverse industries, and we are dedicated to delivering outstanding service while ensuring high customer satisfaction. Our specialized finishing techniques distinguish us in the metal industry, enhancing the performance and durability of our valves. We are committed to consistently providing top-quality Monel Manifold Valves while effectively addressing the unique needs of our customers.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

PTFE Ball Valve Uses

PP Ball Valves find their place in a variety of applications where corrosion resistance and non-metallic construction are crucial. You’ll often see them in water treatment facilities, chemical dosing lines, laboratories, agricultural and irrigation systems, food processing plants, aquaculture, swimming pool setups, and general utility pipelines. These valves are adept at managing acids, alkalis, fertilizers, salts, and low-viscosity chemicals. Their lightweight design and straightforward installation make them a fantastic option for low-pressure fluid systems.
