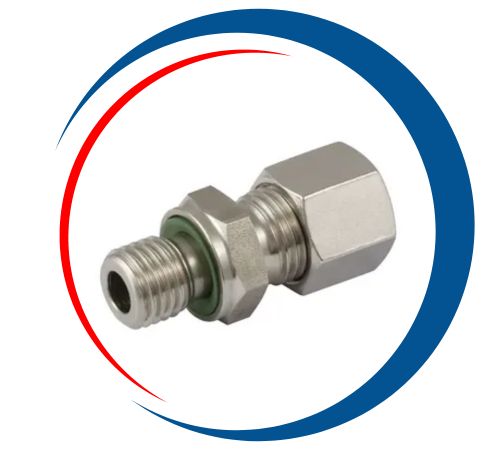

Hydraulic Male Stud Coupling

Home > Hydraulic Male Stud Coupling

Rudra Tubefittings, a well-known manufacturer and supplier located in Kolkata, India, focuses on providing top-notch Hydraulic Male Stud Couplings that are engineered for reliable and leak-proof hydraulic connections. With a strong dedication to quality, precision engineering, and compliance with global standards, the company guarantees that each coupling delivers outstanding durability and strength. Their Hydraulic Male Stud Couplings are designed to endure high pressure, vibration, and tough operating conditions, making them perfect for critical hydraulic applications. Rudra Tubefittings proudly serves a variety of industries with trustworthy products that boost system efficiency, safety, and long-lasting performance.

Hydraulic Male Stud Coupling Supplier in Kolkata, C.S Male Stud Coupling Price List in Kolkata, Male Stud Coupling with ED Manufacturer in Kolkata, SS Male Stud Coupling In India, Hydraulic Weld Connector Exporter in Kolkata, SS Weld Connector With Weld Nipple and O Ring Manufacturer in India, Hydraulic Male Stud Coupling In Kolkata, Kolkata.

These Hydraulic Male Stud Couplings are typically made from high-grade carbon steel, stainless steel, or alloy steel, ensuring excellent mechanical strength and resistance to corrosion. Their materials are chosen for their ability to withstand high pressure and resist wear, vibration, and exposure to hydraulic fluids. On a mechanical level, these couplings offer impressive tensile strength, precise dimensions, and strong sealing capabilities. The threaded stud design ensures a secure attachment, leak-free operation, and stability, which is crucial for reliable performance in demanding hydraulic systems.

Hydraulic Male Stud Coupling Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
CONNECTIONS	TUBE TO MALE THREAD , WELD NIPPLE TO MALE THREAD

BODY TYPE	BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)
APPLICATIONS & INDUSTRIES	CONSTRUCTION EQUIPMENTS , DRILLING PLATFORMS, HYDRO POWER PLANTS , MACHINE TOOLS , RAILWAY TECHNOLOGY , SHIPBUILDING , WIND TUBRINE , MOBILE HYDRAULIC EQUIPMENT , MINNING , STATIONARY HYDRAULIC EQUIPMENT, INDUSTRIAL HYDRAULICS, INJECTION MOULDING MACHINERY , ALUMINUM DIE-CASTING MACHINERY, SINTERING MACHINERY, STEEL MILLS, HYDRAULIC PRESSES, PAPER PROCESSING MOBILE HYDRAULICS, BUILDING MACHINERY, AGRICULTURAL FORESTRY, LIFTING & MATERIAL HANDLING EQUIPMENT
MATERIAL DESIGNATOR	STAINLESS STEEL – ASTM A 276 , ASTM 182
	STEEL – ASTM 108/A105, JIS G4051 S20C, S45C,/G3201 SF440A.
	BRASS – ASTM B16 UNS C36000 , ASTM B282 ALLOY 37700 , JIS H3250 C3604 , C3771 , JIS H3250 C3771.

Top Hydraulic Male Stud Coupling Manufacturing Company in Kolkata

At Rudra Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Male Stud Coupling in Kolkata, Kolkata. Our advanced manufacturing facilities, strategically positioned in the Kolkata, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Hydraulic Male Stud Coupling

Dimension of Hydraulic Male Stud Coupling

DIAM D	C	E	F	F1	DIM G	H	HMAXI	H1	BODY	SEALING WASHER	MINIMUM WORKING TEMPERATURE	MAXIMUM WORKING TEMPERATURE
4 MM	G1/8	6,5 MM	13 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
4 MM	G1/8	5,5 MM	13 MM	10 MM	14 MM	17,5 MM	9 MM	brass	nitrile	-40 CE	100 CE	0,016 KG
4 MM	M5x0,8	5 MM	10 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,01 KG	10
4 MM	M7x1	6,5 MM	10 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
4 MM	M8x1	6,5 MM	11 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
5 MM	G1/8	6,5 MM	13 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,018 KG	10
5 MM	G1/8	5,5 MM	13 MM	12 MM	14 MM	18,5 MM	9,5 MM	brass	nitrile	-40 CE	100 CE	0,027 KG
5 MM	M8x1	6,5 MM	11 MM	12 MM	17,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
5 MM	M10x1	6,5 MM	14 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,02 KG	10
6 MM	G1/8	6,5 MM	13 MM	13 MM	18 MM	8,5 MM	brass	nitrile	-40 CE	100 CE

Hydraulic Male Stud Coupling Exporter in Kolkata, C.S Male Stud Coupling Price List in Kolkata, Male Stud Coupling with ED Manufacturer in Kolkata, Hydraulic Male Stud Coupling In India, Male Stud Coupling with ED Supplier in Kolkata, SS Male Stud Coupling Manufacturer in India, Hydraulic Male Stud Coupling In Kolkata, Kolkata.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Hydraulic Male Stud Coupling Supplier in Kolkata, Kolkata

Rudra Tube Fittings is a leading supplier and stockist of premium Hydraulic Male Stud Coupling in Kolkata, Kolkata. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Male Stud Coupling Uses

You’ll find Hydraulic Male Stud Couplings in hydraulic power units, industrial machinery, mobile equipment, and high-pressure fluid systems where secure and dependable connections are a must. They’re commonly used in construction machinery, agricultural equipment, material handling systems, and automotive hydraulics. Additionally, these couplings play a vital role in oil and gas operations, mining equipment, and manufacturing plants. Their excellent sealing performance and ability to handle high pressure make them ideal for hydraulic lines, fluid transfer systems, and applications that experience constant vibration or mechanical stress. They are essential for maintaining operational safety, efficiency, and seamless system performance.
