Hydraulic Ferrule

Home > Hydraulic Ferrule

Rudra Tubefittings, located in Kolkata, India, specializes in providing top-notch Hydraulic Ferrules that ensure secure, leak-proof connections in high-pressure hydraulic tubing systems. These ferrules are designed to deliver a strong mechanical grip and reliable sealing, making them perfect for safe fluid transfer even in the face of vibrations, pressure changes, and tough operating conditions. With precision machining for accurate tube compression, Rudra’s hydraulic ferrules excel in demanding hydraulic applications. Their durable, corrosion-resistant design guarantees a long service life and dependable performance, making them a go-to choice for industries that need robust hydraulic lines with precision, strength, and lasting leak resistance.

Cs Ferrule Supplier in Kolkata, E02 Cutting Ring Price List in Kolkata, Eo Cutting Ring Manufacturer in Kolkata, Ss 316 Cutting Ring In India, Ss Cutting Ring Exporter in Kolkata, Hydraulic Ferrule Manufacturer in India, Cs Ferrule In Kolkata, Kolkata.

Hydraulic Ferrules are generally made from carbon steel, stainless steel (SS304/SS316), or alloy steel, depending on the pressure of the system and environmental factors. These materials offer high tensile strength, impressive fatigue resistance, and outstanding durability under high-pressure cycling. The ferrules are crafted to bite into the tube surface, forming a strong, vibration-resistant seal. Key mechanical properties include dimensional stability, high compression strength, and solid resistance to wear and exposure to hydraulic fluids. Their sturdy metallurgy ensures leak-proof and reliable performance in demanding hydraulic systems.

Hydraulic Ferrule Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304, SS 304L, SS 316,SS 316L, SS 316TI ( 1.4571), BRASS, COPPER, DUPLEX, SUPER DUPLEX, INCONEL , MONEL, HASTELLOY , 904L, 6MO, TITANIUM, ALUMINUM, ALLOY 20
MATERIAL		SERIES	LL- LOW PRESSURE, L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
BODY TYPE	BAR STOCK
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – BRIGHT FINISH

Top Hydraulic Ferrule Manufacturing Company in Kolkata

At Rudra Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Ferrule in Kolkata, Kolkata. Our advanced manufacturing facilities, strategically positioned in the Kolkata, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfill your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Hydraulic Ferrule

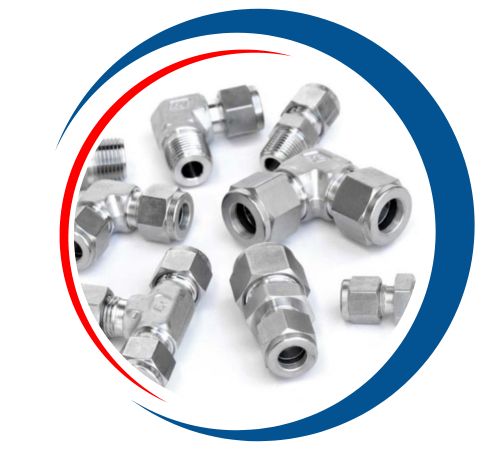

Cs Ferrule

Ss 316 Cutting Ring

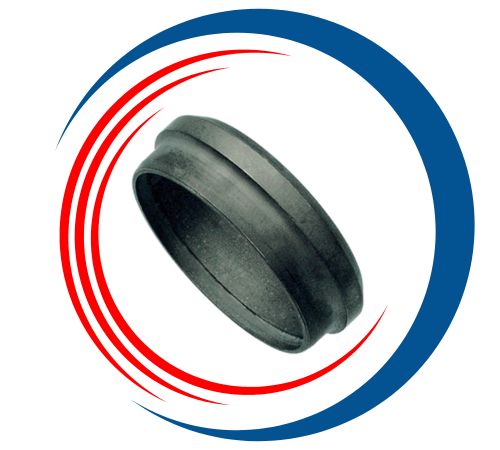

E02 Cutting Ring

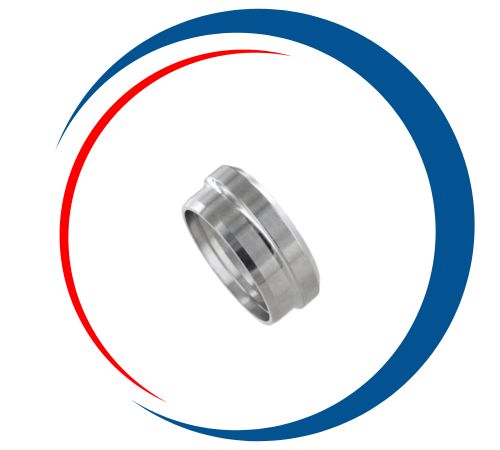

Ss Cutting Ring

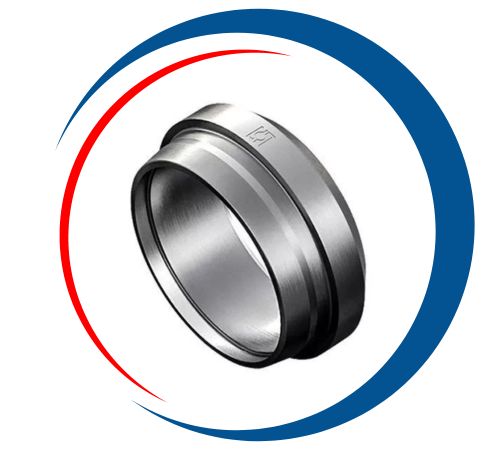

Eo Cutting Ring

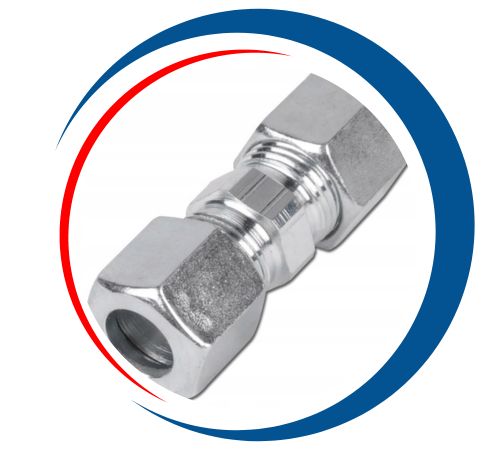

Hydraulic Ferrule

Dimension of Hydraulic Ferrule

DIAM D	C	E	F	F1	DIM G	H	HMAXI	H1	BODY	SEALING WASHER	MINIMUM WORKING TEMPERATURE	MAXIMUM WORKING TEMPERATURE
4 MM	G1/8	6,5 MM	13 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
4 MM	G1/8	5,5 MM	13 MM	10 MM	14 MM	17,5 MM	9 MM	brass	nitrile	-40 CE	100 CE	0,016 KG
4 MM	M5x0,8	5 MM	10 MM	10 MM	16,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,01 KG	10
4 MM	M7x1	6,5 MM	10 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
4 MM	M8x1	6,5 MM	11 MM	10 MM	16,5 MM	7,5 MM	brass	nitrile	-40 CE	100 CE	0,013 KG	10
5 MM	G1/8	6,5 MM	13 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,018 KG	10
5 MM	G1/8	5,5 MM	13 MM	12 MM	14 MM	18,5 MM	9,5 MM	brass	nitrile	-40 CE	100 CE	0,027 KG
5 MM	M8x1	6,5 MM	11 MM	12 MM	17,5 MM	8 MM	brass	nitrile	-40 CE	100 CE	0,015 KG	10
5 MM	M10x1	6,5 MM	14 MM	12 MM	17,5 MM	8,5 MM	brass	nitrile	-40 CE	100 CE	0,02 KG	10
6 MM	G1/8	6,5 MM	13 MM	13 MM	18 MM	8,5 MM	brass	nitrile	-40 CE	100 CE

Hydraulic Ferrule Exporter in Kolkata, Ss Cutting Ring Price List in Kolkata, Ss 316 Cutting Ring Manufacturer in Kolkata, Eo Cutting Ring In India, E02 Cutting Ring Supplier in Kolkata, Eo Cutting Ring Manufacturer in India, E02 Cutting Ring In Kolkata, Kolkata.

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Request a Quote

Largest Hydraulic Ferrule Supplier in Kolkata, Kolkata

Rudra Tube Fittings is a leading supplier and stockist of premium Hydraulic Ferrule in Kolkata, Kolkata. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Ferrule Uses

Hydraulic Ferrules find extensive use in high-pressure hydraulic systems, securing tubing connections in both industrial and mobile applications. You’ll often see them in construction machinery, agricultural equipment, mining systems, industrial hydraulic units, power packs, material-handling equipment, and automated machinery. These ferrules provide strong tube retention and reliable sealing for valves, pumps, cylinders, manifolds, and hydraulic control circuits. Their ability to endure high pressure, vibrations, and continuous operation makes them essential in various applications.
